LEDQuant

1 Watt Under Cabinet LED Light, Warm White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

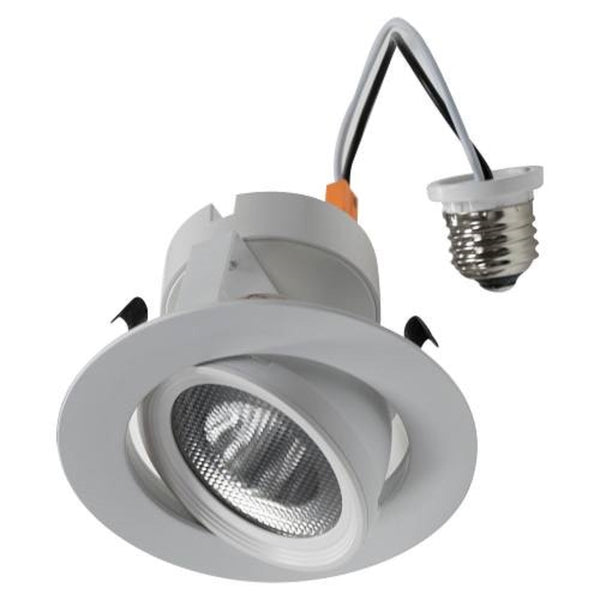

4" Gimbal solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 4" recessed cans.

ILLUMINATION Long life LEDs with up to 50,000 hours at 70% lumen maintenance. Choice of 2700K, 3000K, 4000K and 5000K color temperature with 80 CRI. Produces 675-750 lumens output from luminaire. Uses 1.18W high power, high quality LEDs.

ELECTRICAL Dimmable to 10% with most dimmers. Save 75% compared to incandescent sources. High efficiency driver with a power factor ≥.90 with input power of 120V, 50-60Hz. Built-in LED Driver. Power consumption of 10 watts. Operation temperature of -20°C - 40°C (-4°F - 104°F).

MOUNTING Easy installation with integral clips. No tools required for installation.

HOUSING Compatible with most 4“ housings. Compatible with insulated, non-insulated, and air-tight ceilings. Durable thermoplastic construction. E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.

WARRANTY/LISTING Tested in accordance with IESNA LM79 & LM80. ETL Listed for wet location. Energy Star qualified. Passes FCC Class B. Meets State of California Title 24 requirements. Five year warranty on all electronics and housing.

Specification Sheet

10 Watt Outdoor LED Flood Light, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

The CBDEB (dual-ended bypass, which is hot on both ends) series of LED T8 lamps replace conventional fluorescent lamps in existing luminaires. Offering significant energy-efficiency and lifetime improvements over fluorescent lamps, CBDEB lamps are installed by bypassing existing fluorescent ballasts, and hard-wiring tombstone lamp-holders directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp-holders in existing fluorescent luminaires with instant-start ballasts.

  FEATURES

• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures (except CBDEB8-43, which is available in 5000k only).*
• Long-life LEDs provide up to 90,000 hours of operation with at least 70% of initial lumens output (L70).**
• Models provide 1,100 to 5,500 lumens per lamp, and 121 to 129 lumens per watt (LPW).*
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index ≥ 80.
• Full glass housing inhibits yellowing and distortion
• Easy installation in existing fluorescent luminaires. Bypass models connect directly to incoming AC power leads.

 * contact factory for other color temperatures and lumen packages.

**L70 hours are IES TM-21-11 calculated hours.

  WARRANTY/LISTING

• cULus listed for dry and damp locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
• DLC standard approved (except 3- & 8-foot models, which are not eligible under the DLC linear replacement lamps category).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class B.
• CBDEB8-43 has standard PET (polyethylene terephthalate) polyester coating for shatter-proof performance.
• 5-year warranty of all electronics and housing.
• Other models are available as shatter-proof by special order.

Specification Sheet

LEDQuant's M12V-100W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

20 Watt LED Outdoor Flood Light, Cool White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.

FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70)**
• Available models provide from 9,816 to 18,408 lumens, and from 117 to 131 lumens per watt (LPW)*
• IES roadway photometric distributions include types II-V
• NEMA floodlight distributions include very narrow (3H x 3V), medium narrow (4H x 4V), medium wide (5H x 5V) & very wide (7H x 7V)
• Universal 120-277 AC voltage (50-60Hz) is standard
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Optional glare shields (full & half) & wire guards are available
• Optional NEMA photocell installation kit provides watertight photocell attachment to driver enclosure clover
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heatresistant polycarbonate lens
• Driver enclosure is sealed with a water-tight, silicone rubber gasket
• Effective projected areas (EPA’s) are:
- Front = 0.24 square feet
- Side = 0.29 square feet
- Face = 1.10 square feet
• Easy installation in new construction or retrofit applications


* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS

• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F)
• IP66 rated for ingress protection
• DLC premium approved
• Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level)
• Lens is IK 9 rated for protection from external impacts
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test
• Complies with FCC Part 15, class B
• Complies with EN61000-4-5, surge immunity protection (6kV)
• 5-Year Warranty of all electronics and housing

Specification Sheet

The CLHB-RD-100 is a round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and polycarbonate lens, the CLHB-RD-100 provides durability and high performance. Highefficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

 FEATURES
▪ Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 81,000 hours of operation with at leas t 70% of initial lumen output (L 70).**
▪CLHB-RD-100 provides 13,093 lumens (127 lumens per watt, LPW) at 4000k, and 13,116 lumens (127 LPW) at 5000k.*

▪ Universal 120-277 AC voltage (50-60Hz) is standard. Step down transformers are required for 347-480V applications.
▪ 0-10vdc dimming drivers are standard.
▪ Watertight, compression-type electrical connectors prevent moisture intrusion.
▪ Standard mounting bracket and optional mounting accessories provide ceiling and conduit mounting, and up to 100° of adjustability.
▪ Optional wet-location junction box & bracket attaches to luminaire housing, and simplifies wiring connections in wet locations.
▪ Optional Merrytek occupancy sensor (IP65 rated) and junction box assembly provides a factory-ready, fully-wired luminaire & control package.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted die cast aluminum housing.
▪ Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.
** L 70 hours are IES TM-21-11 calculated hours.

Specification Sheet

Energy efficient LED Flat Square Retrofit kit provides quick and easy installation with no can required. Durable powder-coated diecast trim with enclosed J-box is attached with a water-tight connection. Pre-installed plastic clips included.

 FEATURES
▪ 120V Dimmer standard, 50/60Hz.
▪ Dimmable down to 5% with most market dimmers.
▪ Use for recessed applications with drywall or drop tile ceilings (no recessed can needed).
▪ Small, lightweight J-box standard.
▪ Long life, 50,000 hour LEDs.
▪ -30°C ~ 40°C (-22°F ~ 104°F) operating temperature.

Specification Sheet

120 Watt Corn LED Bulb, High Power, Natual White, Energy Efficient. Retrofit for 400W Metal Halide Lights. Reduced energy consumption by up to 70%. 2 year guarantee.

AC/DC Power Adapter for 5050, 3528 RGB LED Strips, UL certified, 3-Prong US Plug

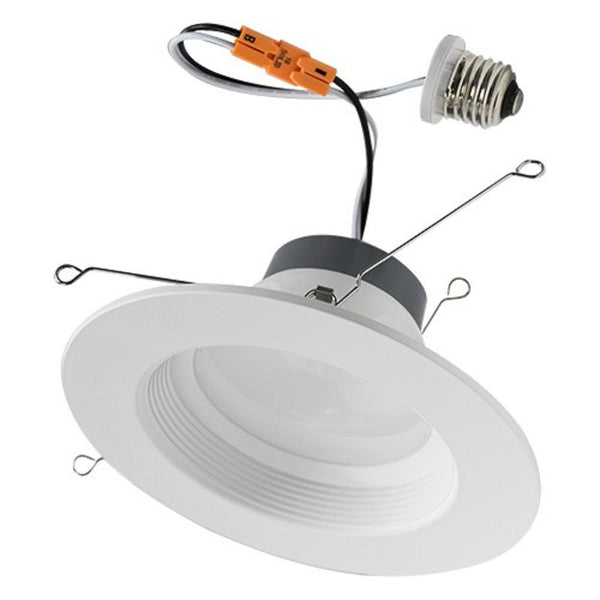

Economy 5” & 6” Recessed downlight retrofit solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 5” & 6” recessed cans.

FEATURES Long life LEDs with up to 50,000 hours at 70% lumen maintenance. Choice of 2700K, 3000K, 4000K or 5000K color temperatures with 80 CRI Produces 800-860 lumens output from luminaire Uses 1.18W high power, high quality LEDs Dimmable to 10% with most dimmers Save 75% compared to incandescent sources High efficiency driver with a power factor ≥.90 with input power of 120V, 50-60Hz

ELECTRICAL Built-in LED Driver Power consumption of 12 watts Operation temperature of -20°C -40°C (-4°F- 104°F)

MOUNTING Easy installation with adjustable torsion spring Torsion spring is designed to fit into 5” or 6” housing automatically without changing mounting tab No tools required for installation * Contact factory for other color temperatures and lumen packages. ** L70 hours are IES TM-21-11 calculated hours.

WARRANTY & LISTINGS Tested in accordance with IESNA LM79 & LMB0 ETL Listed for wet location ENERGY STAR qualified Passes FCC Class B 5-year warranty on all electronics and housing

HOUSING Compatible with most 5” and 6” housings Compatible with insulated, non-insulated, and air-tight ceilings Durable thermoplastic construction E26 medium screw-base Edison connector provides easy retrofit of incandescent housings 6" square baffle snap-in (optional)

Specification Sheet

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.


 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70)**
• Available models provide from 9,816 to 18,408 lumens, and from 117 to 131 lumens per watt (LPW)*
• IES roadway photometric distributions include types II-V
• NEMA floodlight distributions include very narrow (3H x 3V), medium narrow (4H x 4V), medium wide (5H x 5V) & very wide (7H x 7V)
• Universal 120-277 AC voltage (50-60Hz) is standard
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Optional glare shields (full & half) & wire guards are available
• Optional NEMA photocell installation kit provides watertight photocell attachment to driver enclosure clover
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heatresistant polycarbonate lens
• Driver enclosure is sealed with a water-tight, silicone rubber gasket
• Effective projected areas (EPA’s) are:
- Front = 0.24 square feet
- Side = 0.29 square feet
- Face = 1.10 square feet
• Easy installation in new construction or retrofit applications


* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS

• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F)
• IP66 rated for ingress protection
• DLC premium approved
• Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level)
• Lens is IK 9 rated for protection from external impacts
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test
• Complies with FCC Part 15, class B
• Complies with EN61000-4-5, surge immunity protection (6kV)
• 5-Year Warranty of all electronics and housing

Specification Sheet

LEDQuant's M12V-150W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

LEDQuant's M24V-150W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

The CLHB-IB-150 is an LED I-Beam high bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-IB-160 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HIB high bays.

 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Delivers 22,256 lumens from 160 watts input (160 lumens per watt) at both 4000k & 5000k.*
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Painted steel housing.
• Options include pendant-mounting kits, surface-mounting kits, diffused lenses, and steel wire-guard kits.
• Easy installation in new construction or retrofit.

*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed to applicable U.L. standards. Listed for damp locations. Suitable for ambient temperatures from -20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Complies with FCC Part 15, class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• 5-year warranty of all electronics and housing.

Specification Sheet

Energy efficient LED Flat Square Retrofit kit provides quick and easy installation with no can required. Durable powder-coated diecast trim with enclosed J-box is attached with a water-tight connection. Pre-installed plastic clips included.

 FEATURES
▪ 120V Dimmer standard, 50/60Hz.
▪ Dimmable down to 5% with most market dimmers.
▪ Use for recessed applications with drywall or drop tile ceilings (no recessed can needed).
▪ Small, lightweight J-box standard.
▪ Long life, 50,000 hour LEDs.
▪ -30°C ~ 40°C (-22°F ~ 104°F) operating temperature.

Specification Sheet

The CLMAL series is a group of premium architectural LED multi-purpose area luminaires designed to illuminate parking lots, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.

 FEATURES

▪ Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ CLMAL-15 provides 1,593 lumens (114 lumens per watt, LPW) at 3000k; 1,603 lumens (115 LPW) at 4000k; and 1,624 lumens (116 LPW) at 5000k.*
▪ Standard optic provides an IES roadway type V distribution, or a 7V (vertical) x 7H (horizontal) NEMA floodlight distribution.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Optional glare shields (full & half) & wire guards are available.
▪ Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
▪ Wireway enclosure is sealed with a water-tight, silicon rubber gasket.
▪ Effective projected areas (EPA's) are:
- Front = 0.05 s.f. (knuckle) / 0.06 s.f. (yoke)
- Side = 0.07 s.f. (knuckle & yoke)
- Face = 0.20 s.f. (knuckle) / 0.23 s.f. (yoke)
▪ Easy installation in new construction or retrofit applications.


* contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS

• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F).
• IP66 rated for ingress protection.
• DLC premium approved.
• Rated for 3G vibration.
• Lens is IK 8 rated for protection from external impacts.
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test.
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity protection (2.5kV).
• 5-Year Warranty of all electronics and housing.

 MOUNTING OPTIONS

• Yoke-mounted option provides secure attachment to flat surfaces.
• Aluminum die-cast knuckle-mount option is installed on a junction box. Includes ½” NPS stem with locking nut.

Specification Sheet

Energy efficient LED Flat Square Retrofit kit provides quick and easy installation with no can required. Durable powder-coated diecast trim with enclosed J-box is attached with a water-tight connection. Pre-installed plastic clips included.

 FEATURES
▪ 120V Dimmer standard, 50/60Hz.
▪ Dimmable down to 5% with most market dimmers.
▪ Use for recessed applications with drywall or drop tile ceilings (no recessed can needed).
▪ Small, lightweight J-box standard.
▪ Long life, 50,000 hour LEDs.
▪ -30°C ~ 40°C (-22°F ~ 104°F) operating temperature.

Specification Sheet

The back-lit LED panel CLFPB14-32 series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.

FEATURES

• Available in 3000k, 3500k, 4000k and 5000k color temperatures.
• Long-life LEDs provide 144,000 hours of operation with at least 70% of initial lumens output (L70).**
• Provides 4,124 luminaire lumens (128 lumens per watt, LPW) at 3500K, 4,147 luminaire lumens (129 LPW) at 4000k, and 4,169 luminaire lumens (129 LPW) at 5000k.*
• Uniform illumination with no visible LED pixilation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Aluminum frame and steel housing backplate.
• PMMA (polymethyl methacrylate) LED lenses for optimal light distribution, efficiency and longevity.
• Standard earthquake clips provide secure installation in grid ceilings.
• Standard mounting options include recessed mounting in grid ceilings or suspended mounting using attached hanging brackets.  For mounting in plasterer other hard ceilings, see Mounting Kits
• Easy installation in new construction or retrofit.

**L70 hours are IES TM-21-11 calculated hours.

WARRANTY/LISTINGS

▪ cULus for damp locations and insulated ceilings (IC-rated). Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, class B.
▪ Complies with EN61000-4-5, surge immunity protection (1kV).
▪ 5-Year Warranty of all electronics and housing.

DLC Approval is Required for Most Rebate Programs:

This light is DLC approved! The DesignLights Consortium® promotes quality, performance and energy efficient commercial sector lighting solutions through collaboration among its federal, regional, state, utility, and energy efficiency program members, luminaire manufacturers, lighting designers, and other industry stakeholders throughout the US and Canada.

Specification Sheet

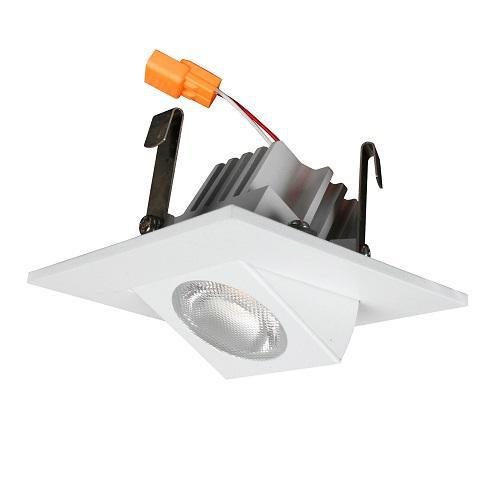

2" LED Square Adjustable Gimbal Retrofit kit. It is compatible with most 2” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CCT 2700K, 3000K, 4000K, 5000K available
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• Wet locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 3 1/8" x 2 5/8"

Specification Sheet

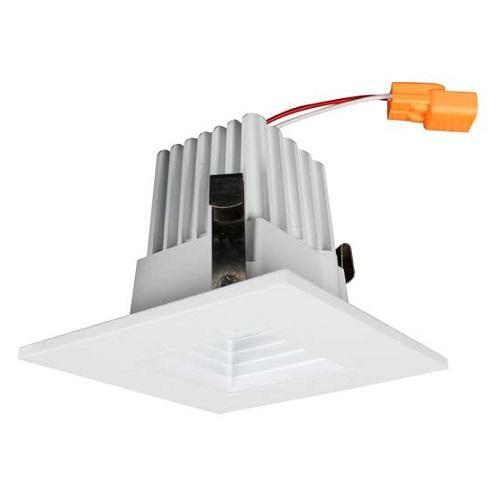

2" LED Square Baffle Retrofit kit. It is compatible with most 2” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CCT 2700K, 3000K, 4000K, 5000K available
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• We locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 3 1/8" x 2 5/8"

Specification Sheet

LED “A” lamps used for any incandescent “A” lamp replacement, long life maintenance free LED replacement lamps.

LED “A” lamps used for any incandescent “A” lamp replacement, long life maintenance free LED replacement lamps.

CBBR30 lamps are for use in recess down lights, track and outdoor security lights. These are long life maintenance free LED replacement lamps.

 FEATURES
• Direct incandescent replacement
• 110° Beam angle
• E26 medium Edison Screw-in base
• Built-in high efficiency LED driver
• 25,000 hour life span
• UL listed for damp locations (-20°C - 40°C)
• 5 year warranty on all electronics and housing

Specification Sheet

CBPAR20 bulbs are for use in recess down lights, track and outdoor security lights. These are long life maintenance free LED replacement lamps.

 FEATURES
• Direct incandescent replacement
• 25° Beam angle
• E26 medium Edison Screw-in base
• Built-in high efficiency LED driver
• 25,000 hour life span
• ENERGY STAR certified
• ETL listed for damp locations (-20°C - 40°C)
• 5 year warranty on all electronics and housing

Specification Sheet

LED PAR30 bulbs are for use in recess down lights, track and outdoor security lights. These are long life maintenance free LED replacement lamps.

 FEATURES
• Direct incandescent replacement
• 25° Beam angle
• E26 medium Edison Screw-in base
• Built-in high efficiency LED driver
• 25,000 hour life span
• ENERGY STAR certified
• ETL listed for damp locations (-20°C - 40°C)
• 5 year warranty on all electronics and housing

Specification Sheet

CBPAR38 bulbs are for use in recess down lights, track and outdoor security lights. These are long life maintenance free LED replacement lamps.

 FEATURES
• Direct incandescent replacement
• 25° Beam angle
• E26 medium Edison Screw-in base
• Built-in high efficiency LED driver
• 25,000 hour life span
• ENERGY STAR certified
• ETL listed for damp locations (-20°C - 40°C)
• 5 year warranty on all electronics and housing

Specification Sheet

20 Watt LED Outdoor Flood Light, Cool White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

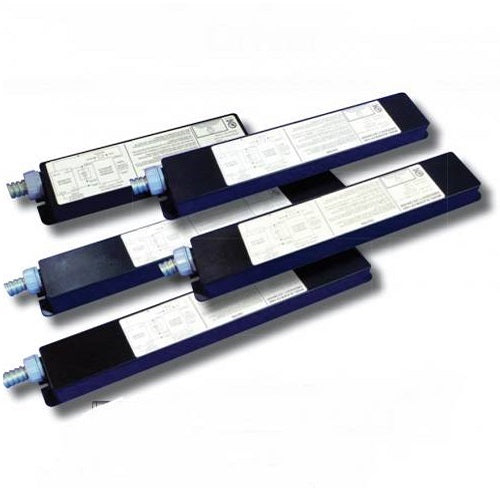

Provides constant power output to the load during emergency mode operation. Designed to be operated as NORMALLY-ON, NORMALLY-OFF or SWITCHED-LOAD. Suitable for installation inside, on-top, or in remote mount of the fixture.

 FEATURES
• UL Classified for factory or field installation
• LED illuminated and remote mounted test switch
• Output short/overcurrent protection
• Electronic limiting with normal operation resuming upon removal of fault
• Input overcurrent protection
• Surge protection
• UL Listed for damp locations
• 5 year warranty on all electronics and housings

 Specification Sheet
